Name: China Customized Liquid Cooling Tube Laser Welding Machine Manufacturers Suppliers Factory
Brand: Hairong Laser
SKU: 302431459

Product Description

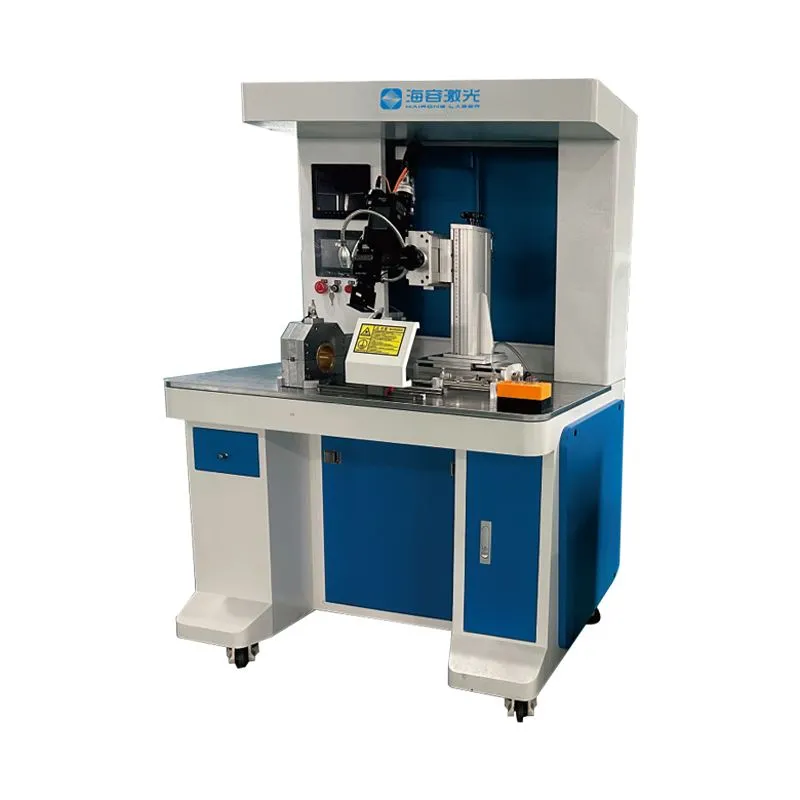

The Hairong Liquid Cooling Tube Laser Welding Machine is specially developed for precision welding of liquid cooling tubes, cooling plates, heat dissipation components, and metal thermal management systems.

Designed for high-speed industrial production, this fiber laser welding solution delivers stable laser energy, excellent beam quality, deep penetration welding, and low thermal deformation, helping manufacturers achieve highly consistent and leak-free welding results.

Compared with traditional welding methods, the machine offers faster welding speed, cleaner weld seams, reduced heat affected zones, and improved production stability, making it ideal for industries requiring high sealing performance and precision thermal management components.

It is widely used in liquid cooling system manufacturing for new energy vehicles, battery cooling systems, data centers, energy storage equipment, electronic cooling components, and industrial heat exchange applications.

Technical Parameter

Model	HR-YL1500	Laser Power	1500W
Laser Wavelength	1080±10nm	Max. Modulation Frequency	5KHZ
Operating Mode	Continuous / Modulated	Laser Welding Depth	0-3.0mm
Adjustable Spot Range	0.2-5.0mm	Aiming & Positioning	Red Light Indication + CCD
Cooling Method	Water Cooling	Total Power Consumption	<6.5 kW (depending on actual laser power)
Power Requirements	220V士5%,50Hz30A	Dimensions	1200x800x810mm

highlighting advantages

Stable Laser Energy for Consistent Welding Quality

Stable laser output is one of the most critical factors in industrial pipe welding. Hairong adopts a high-quality fiber laser source with excellent beam mode performance, ensuring stable energy transmission during continuous welding processes.

High Welding Speed with Low Heat Deformation

Traditional welding methods often generate excessive heat, which can easily deform thin-wall corrugated tubes. Hairong fiber laser welding technology produces a high depth-to-width ratio, allowing fast and precise welding with minimal thermal impact.

Smooth & Beautiful Weld Seams Without Porosity

Weld seam quality directly affects the sealing performance and service life of corrugated pipes. Hairong laser welding technology produces smooth, uniform, and aesthetically clean weld seams with excellent sealing capability.

HD CCD Camera Monitoring for Precise Weld Positioning

To further enhance welding precision and operator efficiency, the equipment is outfitted with a high-definition CCD camera and a dedicated industrial lighting system. Operators can clearly observe the welding position and results in real time, enabling more precise adjustments and effectively enhancing production stability.
