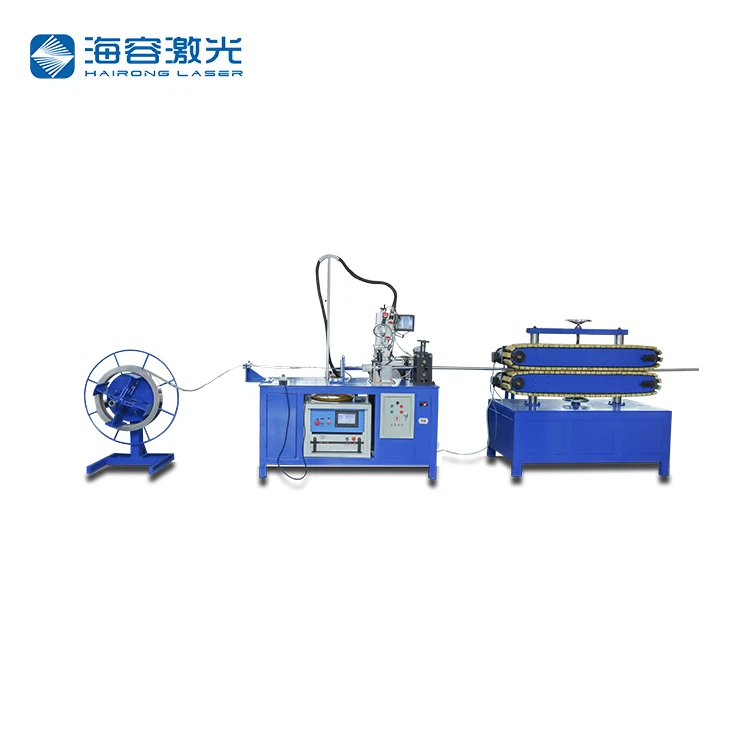

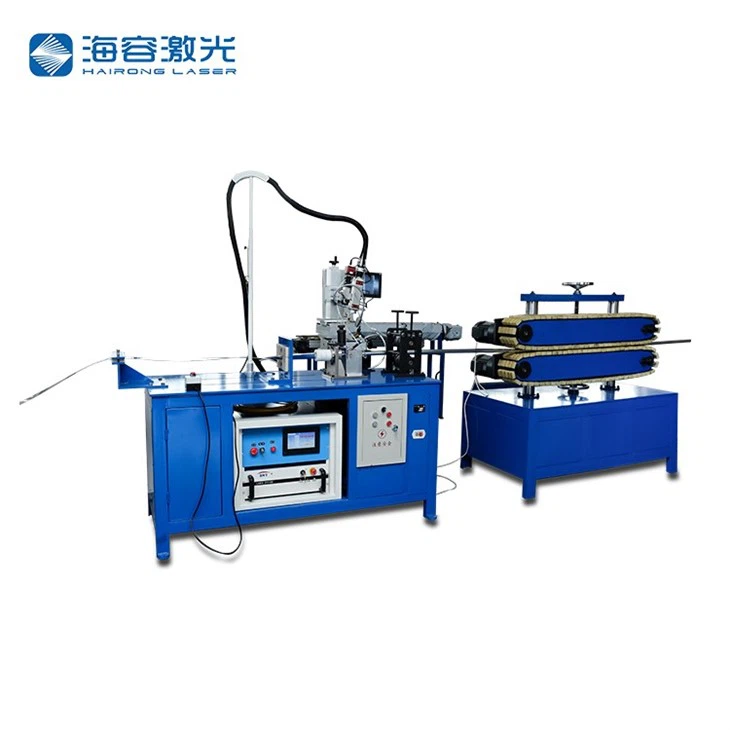

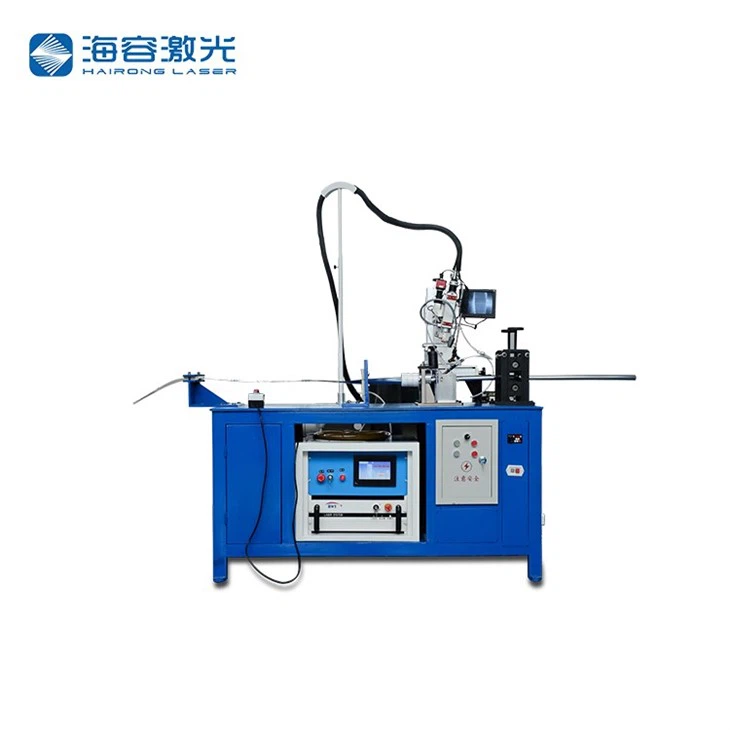

Model Features

Stable laser energy and good beam pattern;

Ø has high melting depth to width ratio, small weld width, small heat affected zone, small deformation and fast welding speed;

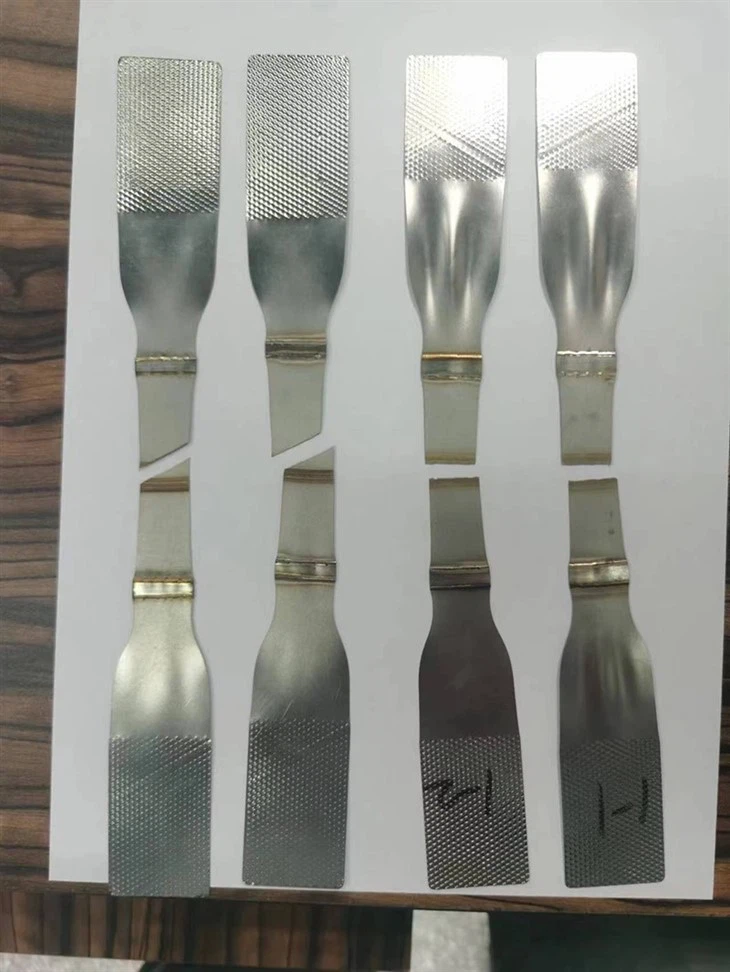

Ø weld seam is flat and beautiful, high quality of weld seam, no porosity;

Ø with high-definition CCD camera with a special light source can be clearly observed at any time the position of the weld seam and welding effect;

Ø high-precision three-dimensional adjustable table welding with high-definition CCD camera weld alignment is more intuitive, without the need for professional staff can be debugged, the professional skills of the personnel require low;

Ø special cooling welding chamber and blowing nozzle structure designed for pipe, it is more convenient to replace different types of pipe.

Product Advantage

With dual temperature and dual control circulating cooling system can realize 24 hours continuous work;

l does not use tungsten needles, so there will be no perforation caused by skipping needles and no false soldering caused by untimely replacement of tungsten needles;

l Specialized gas shielding structure, the welding effect is also beautiful, without the need for secondary treatment of the weld;

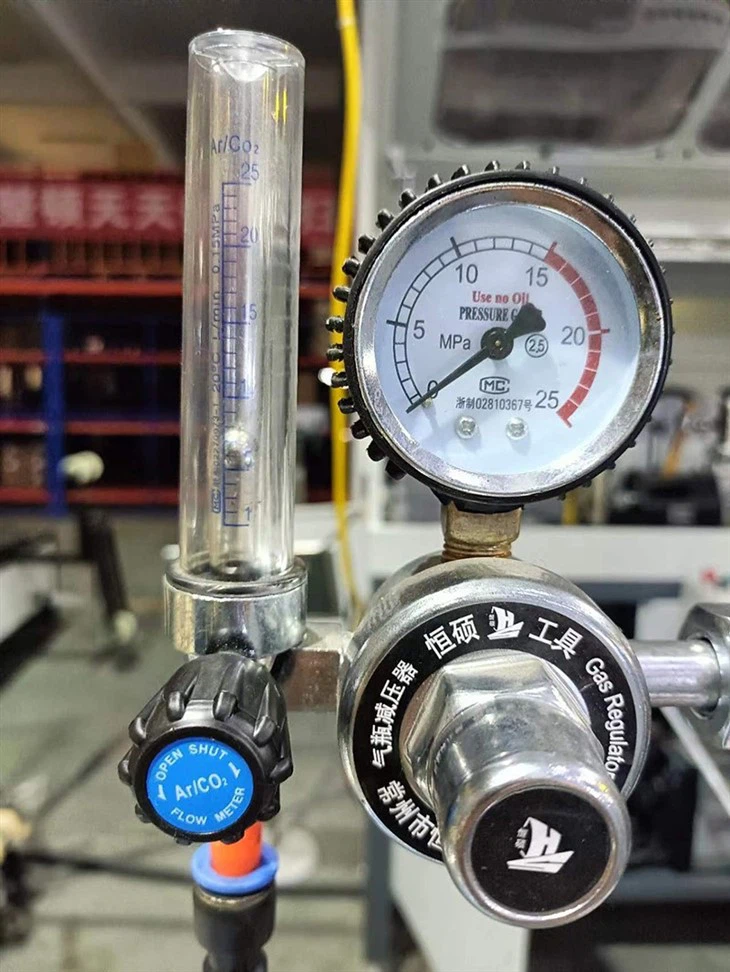

l protection gas can also be changed from the previous use of argon arc welding with high purity argon to universal energy nitrogen, greatly reducing the cost of gas use;

l heat insulation plate structure is limited to block the reflected heat and radiant heat on the pressure and personnel injury;

l welding speed, faster than the traditional argon arc welding speed to 2 to 3 times.

Range of application

Widely used in a variety of stainless steel, aluminum, copper, iron pipe online welding.

Technical Parameters

Maximum output laser power	1000W/1500W/3000W
Power instability	≤3%
Maximum modulation frequency	5KHz
Targeting and positioning	Red light indication + CCD image magnification monitoring system
Minimum spot	0.3mm
Cooling method	Water-cooled (integrated double-cycle chiller)
